How TORCiT works
TORCiT is an innovative battery-powered hydraulic tool for pressing bearings faster without a hammer. With modular press ring adapters, it ensures safe and precise positioning for deep groove ball bearings, gears or roller bearings, reducing assembly errors during press fitting significantly.
Assembly of parts with support bearing
Assembly of parts with journal or shaft

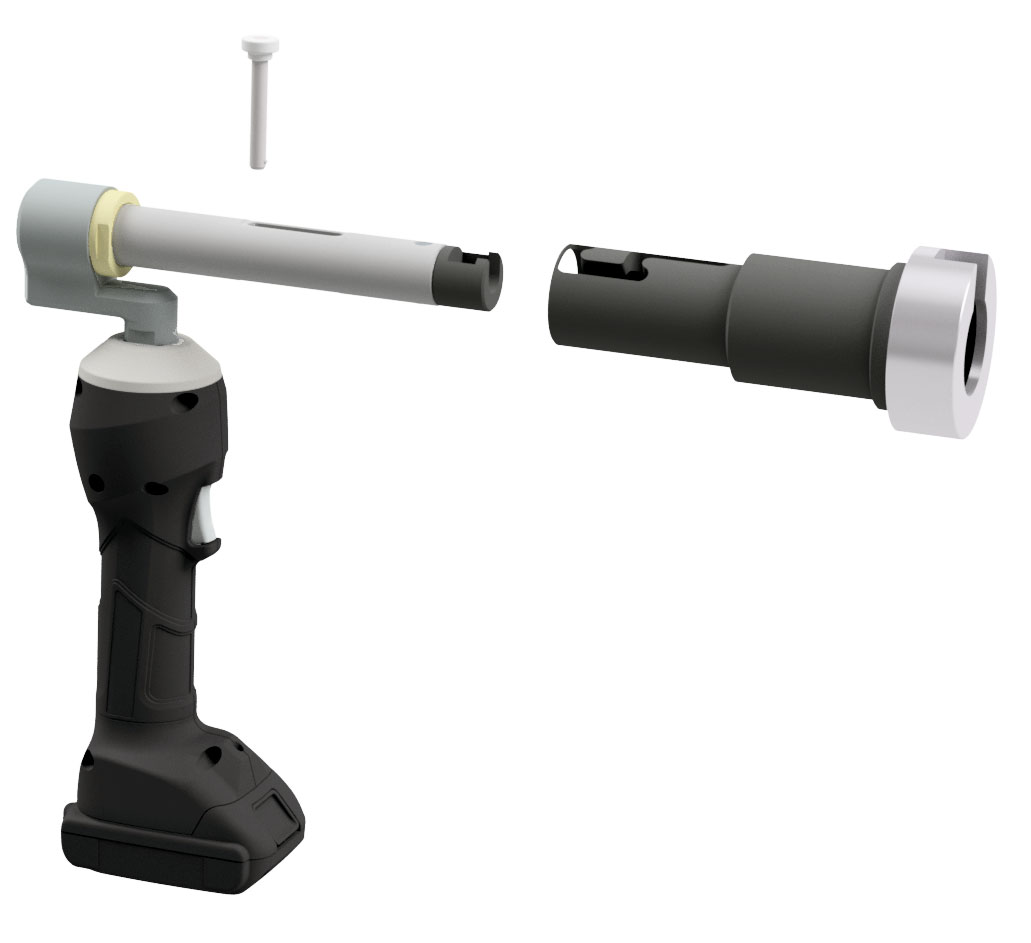

The TORCiT tool set
Our TORCiT set consists of a handy hydraulic unit that is paired with an adapter sleeve and press rings designed for the press fitting of specific components. A compact, battery-powered tool, it is easily positioned and reduces the time and effort for press fitting bearings. With simple assembly and disassembly and neat storage in an individual case, the bearing press tool allows for fast and easy day-to-day operation.
Noise level below 70dB
Press-fit depth up to 100 mm
2 sleeves with a diameter of 35 and 55 mm
262 different bearing types
Weight: max. 4.5 kg
Press force: 19 kN
Makita power system
Our story
TORCiT was built to eliminate challenges that we were too familiar with: High-effort hammering, noise pollution in manufacturing halls and quality issues with assembled parts that go along with manual bearing pressing. TORCiT is the solution.
TORCiT has been developed for companies and operators searching for an ergonomic portable bearing installation tool. Our approach is easy: Production workers get a portable tool kit that allows fast and precise press using a variety of press rings for various components.
TORCiT is the only battery-powered hydraulic tool on the market that allows for safe and precise press-fitting of various parts.
Test it, and you’ll never want to go back.
Why the Name?
Right from the start, we knew that our press-fitting tool needed a short, catchy name that is easy to remember and reflects the tool’s function.
That is why the name TORCiT is as compact and simple as the tool case itself: Torcular stands for press fitting, Kit stands for tool set. Together, they become TORCiT.
Interested in an ergonomic bearing press tool?
Maintenance Service
Reliable operation with regular inspections
You can rely on our expert maintenance service to ensure the highest functionality and process security. We will conduct regular inspections of your TORCiT tool case to exchange relevant components or adapters and recommend expansions for changing customer requirements.
Fast troubleshooting with customer support
FAQs
Which batteries can I use for the TORCiT bearing press tool?
TORCiT is compatible with the Makita 18V battery system.
Alternatively, you can use other types of 18V batteries. We recommend a capacity of 2 Ah to 6 Ah.
When does it make sense to use a bearing press tool in my production process?
- If you want to reduce ergonomic strain on employees and are looking for an alternative to hammering bearings and components.
- If you want to improve workplace safety and prevent assembly errors through controlled processes.
- If you want to reduce cycle time in bearing assembly.
- If you want to improve your assembly quality or resolve existing quality issues during joining by achieving reproducible results and reducing the risk of component damage.
- Using TORCiT is particularly worthwhile for volumes of approximately 1 to 250 joining operations per day.
What force does TORCiT apply?
What is TORCiT’s stroke?
- The TORCiT tool reaches up to 90 mm stroke (3-step bayonet adjustment) with the 35 mm sleeve.
- The TORCiT tool reaches up to 100 mm stroke (3-step bayonet adjustment) with the 55 mm sleeve.
Which bearing diameters does TORCiT cover?
- The 35 mm sleeve covers bearings with a diameter of Ø 25 mm – 55 mm.
- The 55 mm sleeve covers bearings with a diameter of Ø 45 mm – 120 mm.
Does TORCiT require regular maintenance and service?
We recommend a service inspection of your TORCiT tool kit after approximately 20,000 cycles.
Please feel free to contact us for more information.
Can I customize the TORCiT bearing press tool for my specific application?
If our Full Set or Red Set isn’t sufficient, our Custom Set allows you to tailor TORCiT specifically to your application.
How much does TORCiT weigh?
The weight of the bearing press tool may vary depending on the configuration. The fully equipped configuration of TORCiT weighs approximately 4.5 kg.
How heavy is the entire TORCiT tool kit?

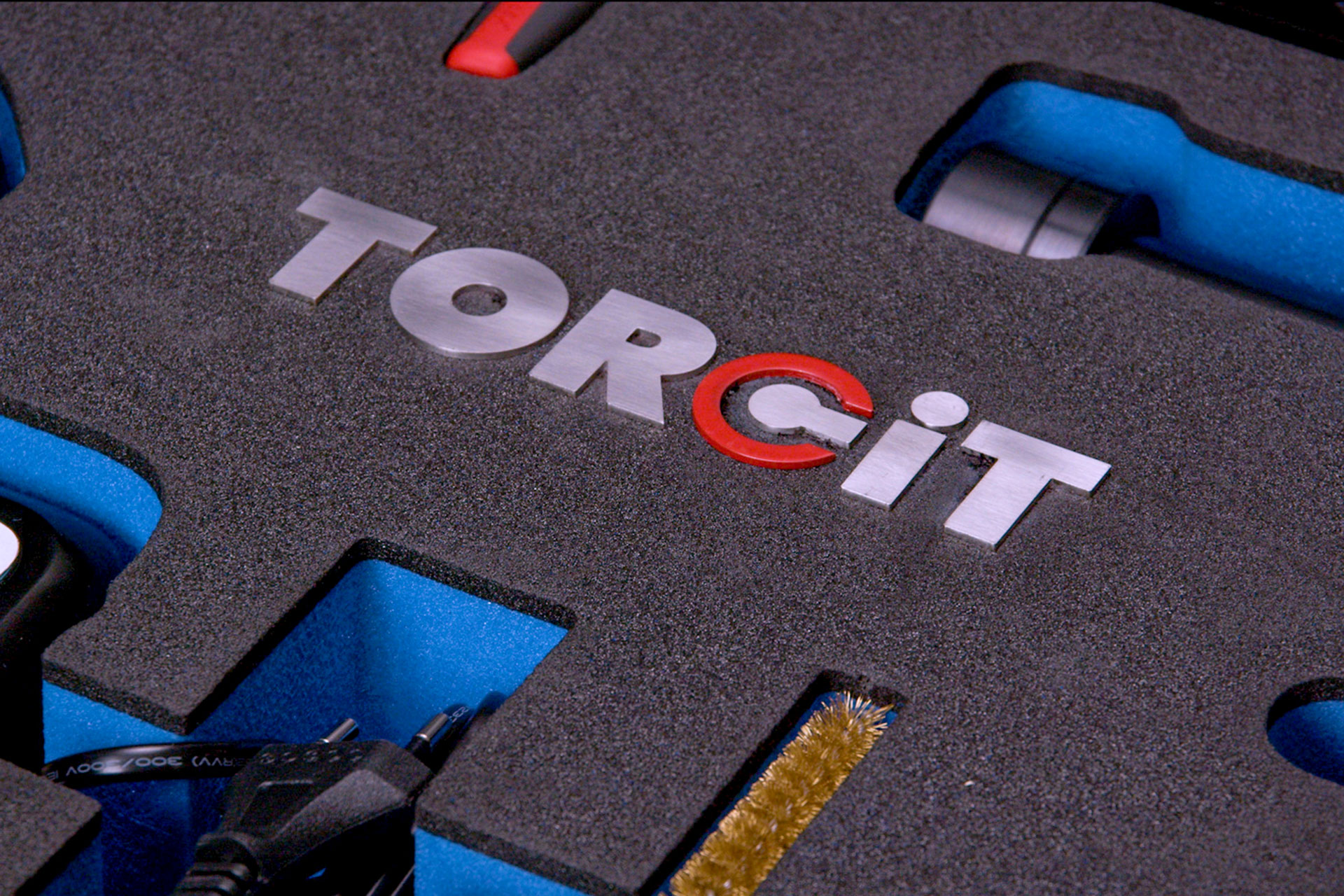

The portable TORCiT system allows you to store your bearing press tools and adapters in an organized case. The full set in the case weighs a total of approximately 21 kg.
What thread sizes are included for shaft mounting?
The sets include adapters for the thread sizes M10, M12, and M16.
What are the dimensions of TORCiT?
Depending on the equipment and tools, the dimensions of TORCiT may vary.
The converted hydraulic unit has the following dimensions:
- Height: 213 mm
- Length: 334 mm
- Width: 80 mm
